MC405C Spider Crane
- Description
Description
MC405C Spider Crane
DESCRIPTION

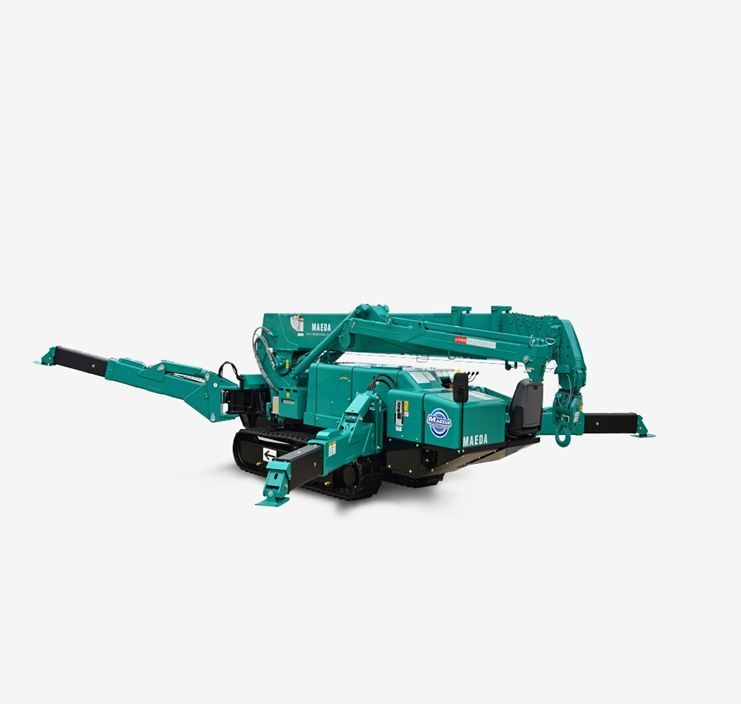

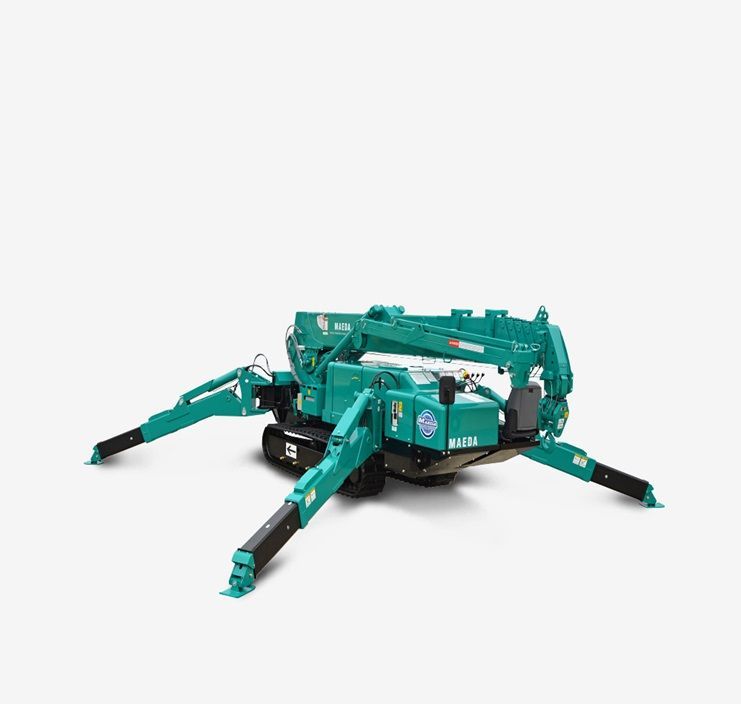

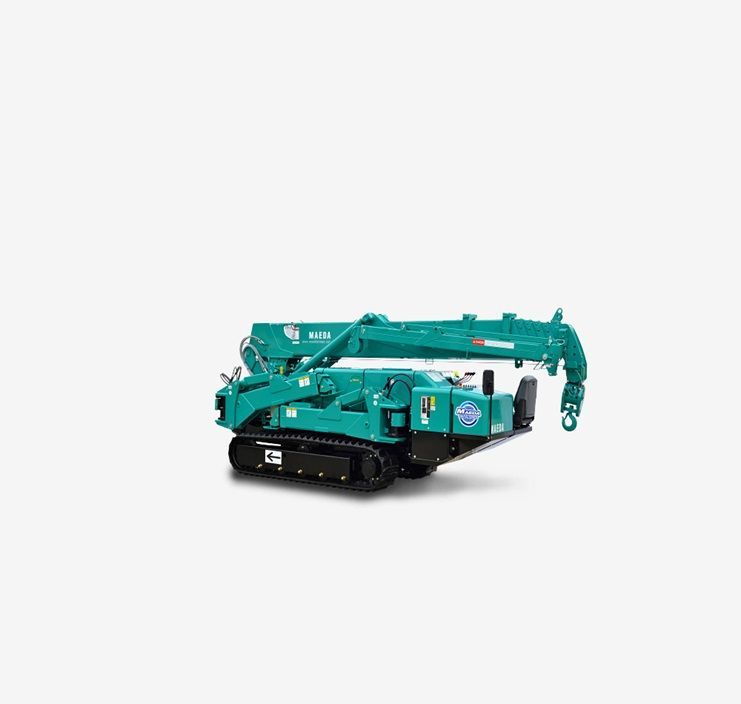

The Maeda MC405C Spider Crane is designed for heavy-duty lifting in both confined and open spaces. It offers a maximum lifting capacity of 3.83 tons and a height of 16.8 meters, extendable to 20.7 meters with an optional fly jib. This crane provides an exceptional working radius of 16 meters, making it suitable for large-scale construction projects. Its compact design and powerful features, such as multi-position outriggers and advanced control systems, make the MC405C ideal for projects that require precision and strength. The crane can also reach 20.5 meters below ground.
MC405C Spider Crane
SPECS

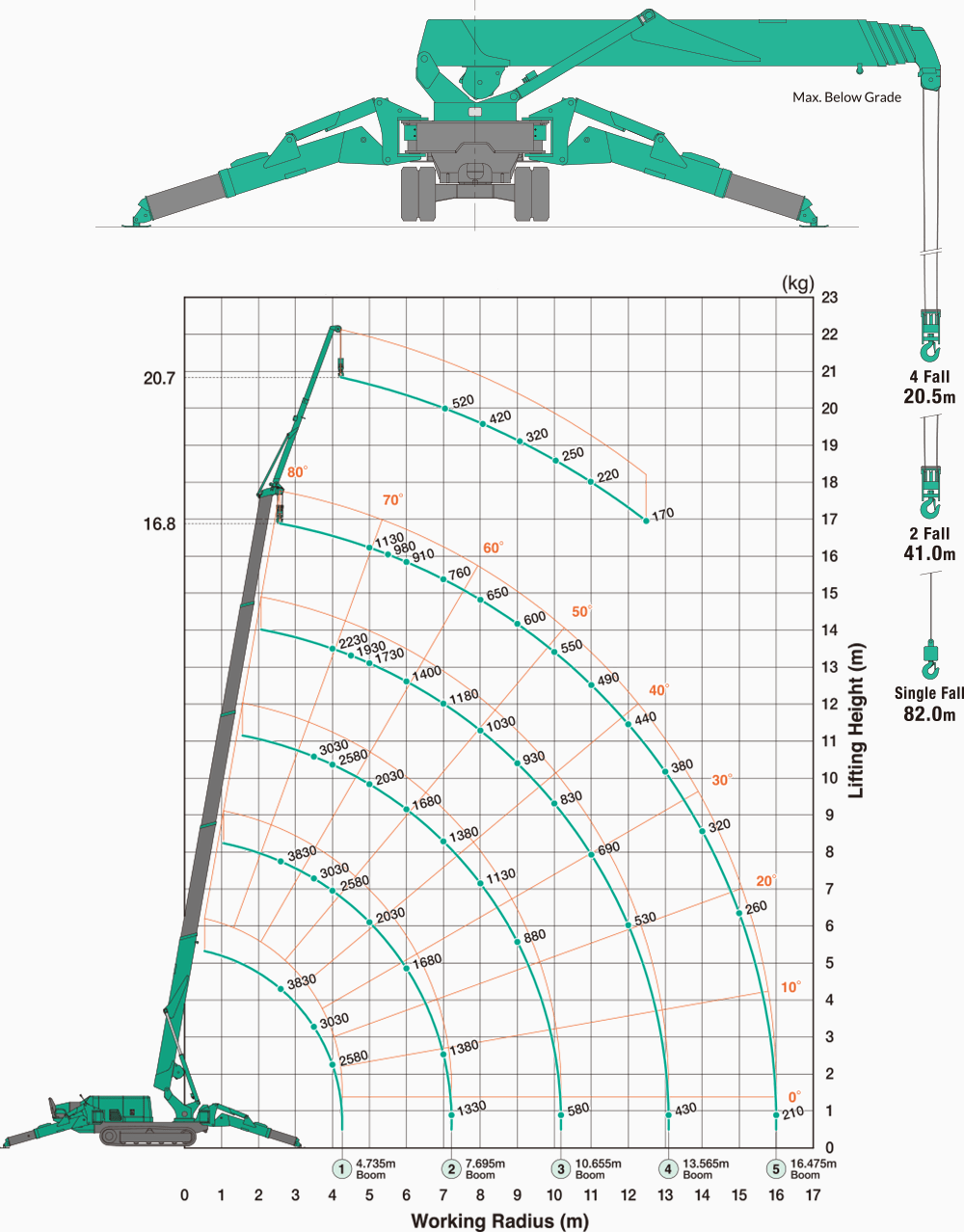

Max Lifting Capacity
3.83 tons (8,480 lbs) at 2.7 meters (8.9 ft)
Max Lifting Height
16.8 meters (55.1 ft) (20.7 meters with fly jib)
Max Working Radius
16 meters (52.4 ft) at 0.21 tons (460 lbs)
Max Reach Below Ground
-20.5 meters (-67 ft)
Dimensions
4,980 mm (L) x 1,380 mm (W) x 1,980 mm (H)
Weight
5,600 kg
Engine Power
21.4 kW
Benefits of Renting the MC405C
- Compact Design: Easy to transport and ideal for tight spaces.
- Advanced Controls: Ensures precise and safe operation.
- Versatile Applications: Suitable for various lifting tasks, both indoors and outdoors.
Applications
- Glass installation
- Steel erection
- Cladding
- Maintenance tasks
- Confined space lifting
STANDARD EQUIPMENT
All our cranes include a range of standard equipment that ensure the safety, functionality and usability of the cranes are unsurpassed.
Remote Control with Digital Display
Crane 2 Speed Function Travel 2 Speed Function
4 fall/2 fall Hook Block
Automatic Hook Stowage System
Level
Diagnostic Display Panel
Programmable Moment Limiter
Crane / OR Interlock (OR Set Lamp)
Working Status Lamp
Data Logger
Pick & Carry
Tilt Alarm
QUESTIONS & ANSWERS
Q. What is the maximum lifting capacity of the MC405C spider crane?
The MC405C spider crane has a maximum lifting capacity of 3.83 tons (8,480 lbs) at 2.7 meters (8.9 ft).
Q. What are the dimensions of the MC405C when stowed for transport?
When stowed, the MC405C measures 4,980 mm (L) x 1,380 mm (W) x 1,980 mm (H).
Q. How high can the MC405C spider crane lift?
The MC405C can lift to a maximum height of 16.8 meters (55.1 ft) and 20.7 meters (67.9 ft) with a fly jib.
Q. What are the primary applications of the MC405C spider crane?
The MC405C is primarily used for glass installation, steel erection, cladding, maintenance tasks, and lifting operations in confined spaces.
