MC174C Spider Crane
DESCRIPTION
The Maeda MC174C Spider Crane offers an exceptional balance of compactness and power, making it ideal for confined spaces. With a slim body width of only 590mm, it can easily maneuver through tight openings, while its impressive lifting capacity of 1.72 tons allows for handling various construction and maintenance tasks. The MC174C is equipped with user-friendly controls and stability features, making it highly versatile for indoor and outdoor projects that demand precision and strength.
MC174C Spider Crane
SPECS

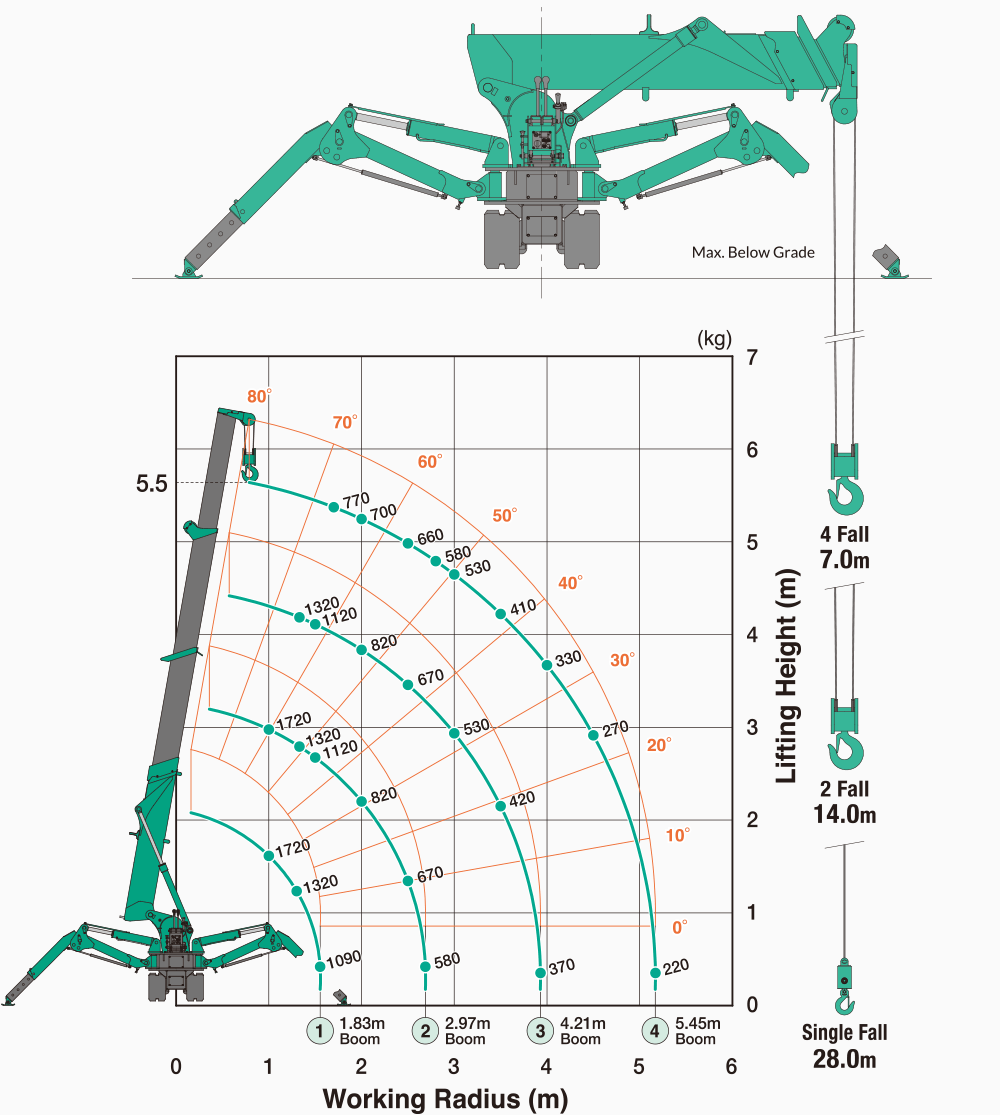

Max Lifting Capacity
1.72 tons (3,790 lbs) at 1.0 meters (3.3 ft)
Max Lifting Height
5.5 meters (18.0 ft)
Max Working Radius
5.17 meters (16.9 ft) at 0.22 tons (480 lbs)
Max Reach Below Ground
-7.0 meters (-23.0 ft)
Dimensions
2,000 mm (L) x 590 mm (W) x 1,300 mm (H)
Weight
1,290 kg
Engine Power
6.6 kW
Benefits of Renting the MC174C
- Compact Design: Easily fits through narrow openings and operates in tight spaces.
- User-Friendly Controls: Simplifies operation, ensuring precise handling.
- Versatile Applications: Suitable for various lifting tasks, both indoors and outdoors.
Applications
- Glass installation
- Steel erection
- Cladding
- Maintenance tasks
- Confined space lifting
STANDARD EQUIPMENT
All our cranes include a range of standard equipment that ensure the safety, functionality and usability of the cranes are unsurpassed.
Remote Control with Digital Display
Travel 2 Speed Functions
Level
Diagnostic Display Panel
Programmable Moment Limiter
Working Status Lamp
Tilt Alarm
Machine Cover
QUESTIONS & ANSWERS
Q. What is the maximum lifting capacity of the MC174C spider crane?
The MC174C spider crane has a maximum lifting capacity of 1.72 tons (3,790 lbs) at 1.0 meters (3.3 ft).
Q. What are the dimensions of the MC174C when stowed for transport?
When stowed, the MC174C measures 2,000 mm (L) x 590 mm (W) x 1,300 mm (H), making it compact for transport and storage.
Q. How high can the MC174C spider crane lift?
The MC174C can lift a maximum height of 5.5 meters (18.0 ft).
Q. What are the primary applications of the MC174C spider crane?
The MC174C is primarily used for glass installation, steel erection, cladding, maintenance tasks, and lifting operations in confined spaces.
