MC104C Spider Crane
- Description
Description

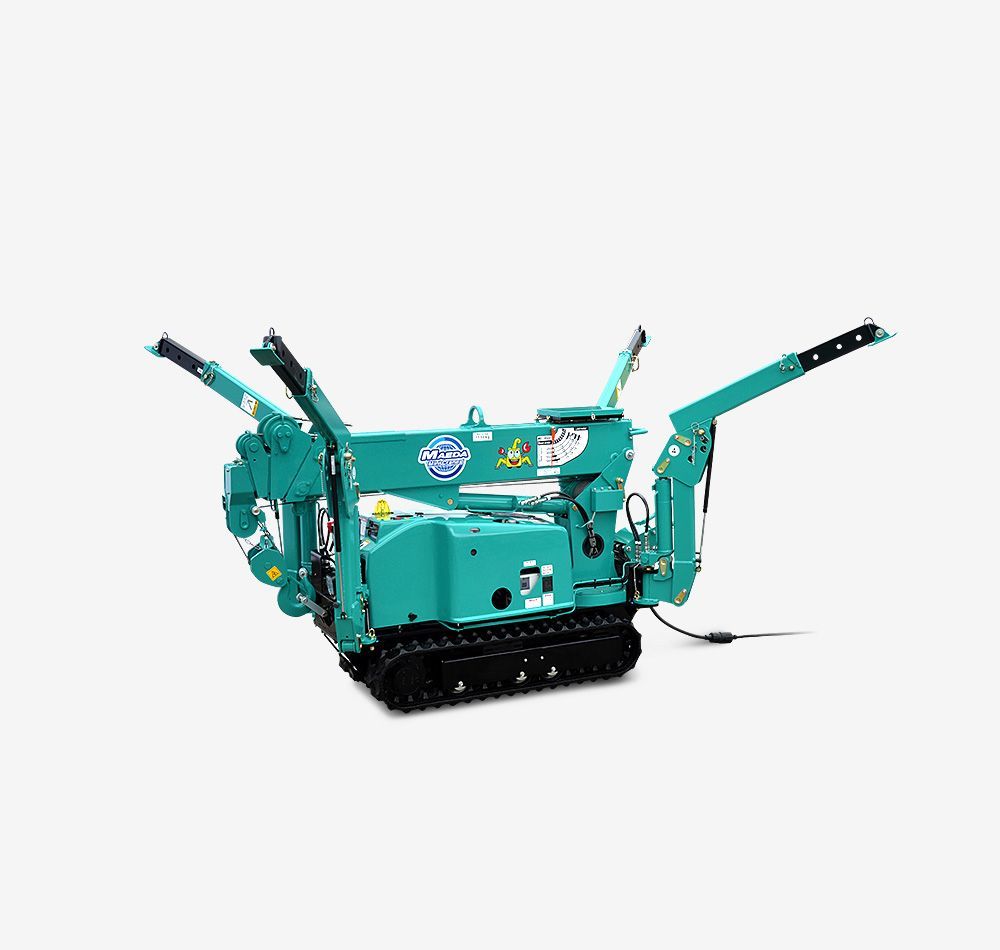

MC104C Spider Crane
DESCRIPTION
The Maeda MC104C Spider Crane is a compact, versatile crane designed for precision lifting in areas with limited space. With its lightweight build and excellent maneuverability, this crane is ideal for intricate indoor construction, glass installation, and confined-area lifting tasks. Its ability to fit through standard doorways and navigate tight spaces makes it a top choice for contractors needing efficient equipment in challenging environments.
MC104C Spider Crane
SPECS

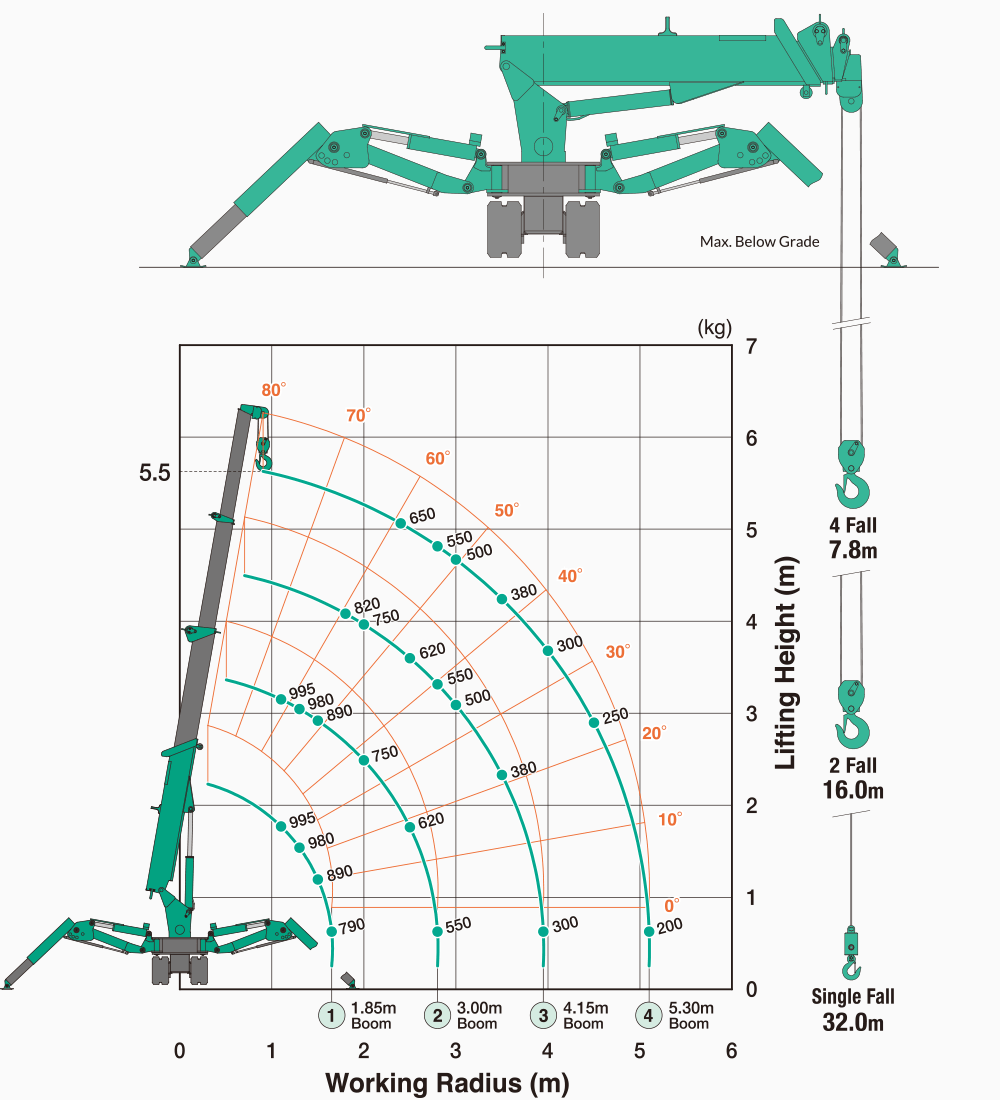

Max Lifting Capacity
0.995 tons (2,190 lbs) at 1.1 meters (3.5 ft)
Max Lifting Height
5.5 meters (18.0 ft)
Max Working Radius
5.1 meters (16.7 ft) at 0.20 tons (440 lbs)
Max Reach Below Ground
48.5 kW (65 hp)
Rated Operating Capacity
-7.8 meters (-25.6 ft)
Dimensions
2,160 mm (L) x 600 mm (W) x 1,305 mm (H)
Weight
1,150 kg
Engine Power
6.8 kW
Benefits of Renting the MC104C
- Compact Design: Fits through standard doorways and operates in tight spaces.
- User-Friendly Controls: Easy to operate with precision for delicate tasks.
- Versatile Applications: Ideal for construction, maintenance, and more.
Applications
- Glass installation
- Steel erection
- Cladding
- Maintenance tasks
- Any confined space lifting
STANDARD EQUIPMENT
All our cranes include a range of standard equipment that ensure the safety, functionality and usability of the cranes are unsurpassed.
Remote Control with Digital Display
Multi Angle Position Outriggers
Level
Diagnostic Display Panel
Electric Motor Power
Machine Cover
QUESTIONS & ANSWERS
Q. What is the maximum lifting capacity of the MC104C spider crane?
The MC104C spider crane has a maximum lifting capacity of 0.995 tons (2,190 lbs) at 1.1 meters (3.5 ft).
Q. What are the dimensions of the MC104C when stowed for transport?
The MC104C’s dimensions, when stowed are 2,160 mm (L) x 600 mm (W) x 1,305 mm (H), making it compact enough to fit through standard doorways.
Q. How high can the MC104C spider crane lift?
The MC104C can lift a maximum height of 5.5 meters (18.0 ft).
Q. What are the primary applications of the MC104C spider crane?
The MC104C is primarily used for glass installation, steel erection, cladding, maintenance, and lifting operations in confined spaces.
