Skid Steer Rental: John Deere 313D

  Daily Weekly Monthly
Regular
$185
$750
$2000
Corporate
$155
$690
$1830
+ Delivery Rate & Operator Rate
Rent Now
We honor the lowest rate on all long term rentals.
604 442 7368

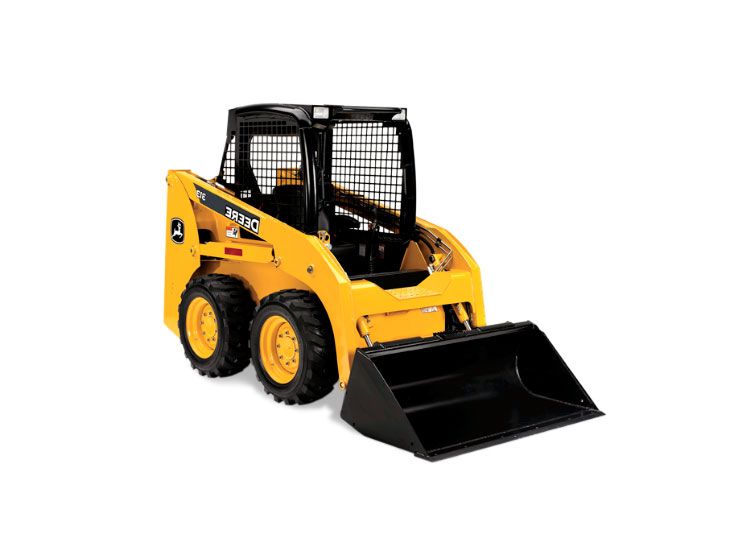

If you need to rent a Skid Steer for a commercial or residential project, the compact, powerful John Deere 313D Skid Steer rental may be your perfect choice. The JD 313D is the smallest size skid steer loader rental available by John Deere.

Compact: At 59 inches wide, the 313D manoeuvres confined areas and tight spots with ease. The next size up from the 313D is the John Deere 315D skid steer rental.

Powerful: The 313D Skid Steer's Turbocharged 2.4L diesel engine delivers 45 HP, allowing you to carry loads up to 1,260 lbs. (Tipping Load: 2,525 lbs.)

Visibility: The John Deere 313D Skid Steer's superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters).

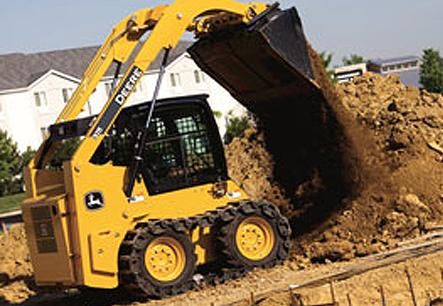

Superior bucket angle: The 313D's 40-degree dump angle allows the bucket to empty all content (including sticky material).

Comfort: The sculptured high back seat will help you keep productivity high.

Reliability: When you rent a Skid Steer like the John Deere 313D you don't have to worry about performance and reliability. As an example, the 313D's heavy‐duty drive chains never need adjusting and the battery is maintenance free.

What can you do with a John Deere 313D Skid Steer rental?

  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Snow removal
  • Remove debris from construction sites
  • Fence pole installation
  • Sod removal
  • Clear land and load rubbish bins
  • Plant trees
  • Remove stumps
  • Load pickup trucks, hoppers and spreaders
  • Grade and level driveways
  • Load sand and gravel
  • Brush Cutting

We provide quick delivery on all skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford, Chilliwack, Whistler, Nanaimo, Victoria. See our Delivery rates for more details.



Dimensions

A. Length with Bucket 10.3 ft in 3140 mm
B. Width Over Tires 4.9 ft in 1500 mm
C. Height to Top of Cab 6.4 ft in 1960 mm
D. Wheelbase 3.1 ft in 950 mm
E. Ground Clearance 7.6 in 193 mm
F. Length w/o Bucket 8 ft in 2440 mm
G. Clearance at Max Lift and Dump 7 ft in 2130 mm
H. Reach at Max Lift and Dump 17.4 in 442 mm

Engine

Make John Deere
Model 4024T
Gross Power 49 hp 36.5 kw
Net Power 45 hp 33.6 kw
Power Measured @ 2400 rpm
Displacement 149 cu in 2.4 L
Number of Cylinders 4
Aspiration Turbocharged

Operational

Operational Weight 5150 lb 2336 kg
Fuel Capacity 17.4 gal 66 L
Cooling System Fluid Capacity 1.6 gal 6.2 L
Engine Oil Fluid Capacity 2.4 gal 9 L
Hydraulic System Fluid Capacity 5 gal 19 L
Chain Box Fluid Capacity - each side 3.9 gal 14.8 L
Max Speed 6.8 mph 10.9 km/h
Tire Size 10x16.5 8 PR
Operating Voltage 12 V
Alternator Supplied Amperage 70 amps

Loader

Operating Load Rating 1261 lb 572 kg
Tipping Load 2526.5 lb 1146 kg
Breakout Force 3302.5 lb 1498 kg
Bucket Capacity 0.52 yd3 0.4 m3

Hydraulic

Pump Flow Capacity 15.1 gal/min 57 L/min
Relief Valve Pressure 3450 psi 23786.9 kPa

Dimensions

Length with Bucket 10.3 ft in 3140 mm
Length w/o Bucket 8 ft in 2440 mm
Width Over Tires 4.9 ft in 1500 mm
Height to Top of Cab 6.4 ft in 1960 mm
Clearance at Max Lift and Dump 7 ft in 2130 mm
Wheelbase 3.1 ft in 950 mm
Ground Clearance 7.6 in 193 mm
Reach at Max Lift and Dump 17.4 in 442 mm
Turning Radius from Center - inc bucket 74.4 in 1890 mm
