Greater Vancouver Skid Steer & Mini Excavator Rentals

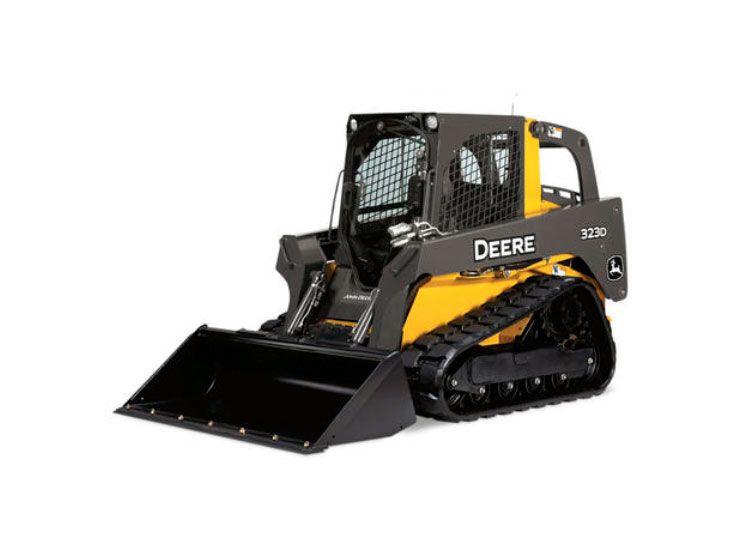

Compact Track Loader Rental: John Deere 323D

  Daily Weekly Monthly
Regular
$390
$1550
$4100
Corporate
$360
$1430
$3790
+ Delivery Rate & Operator Rate
Rent Now
We honor the lowest rate on all long term rentals.
604 442 7368

Do you need to rent a Compact Track Loader CTL (Rubber Track Skid Steer) for a commercial or residential project?  If so, consider renting the JD 323D compact track loader. If you're looking for amazing stability on slopes and superior lifting ability, a John Deere 323D rental might be your best bet.

Tracks vs. Tires: Why rent a Compact Track Loader vs. a skid steer?

  •  Compact Track Loaders (Rubber Track Skid Steer) provide superior stability and are excellent for working on slopes with uneven terrain or surfaces with loose gravel, mud or soft ground. (Places a skid steer would likely get stuck).

  • The 323D tracks distribute the loader's weight evenly (at 5.4 psi) minimizing ground pressure. Result? Minimal damage to sensitive surfaces and under-structure such as soil, lawns, and pipes.
  • No flat tires...

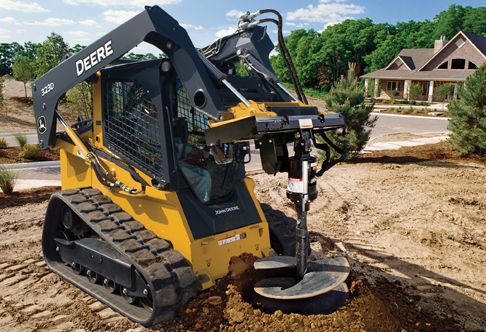

Power: The 323D's 5 cylinder engine delivers 74 HP (vs. 66 HP for the CT322), allows you to carry loads of up to 2,295 lbs. (vs. 2,200 lbs. for the John Deere CT322 Compact Track Skid Steer Loader Rental). The 323D'sTipping Load is 7,175 lbs. (vs. 6,400 lbs. for the CT322).

Visibility: Industry-leading 360-degree visibility provides enhanced productivity and safety.

Superior bucket angle: The 42-degree dump angle allows the bucket to empty all content (including sticky material).

Comfort: The John Deere 323D's sculptured high back seat will help you keep productivity high.

What can you do with a John Deere 323D Compact Track Loader Rental (Rubber Track Skid Steer Rentals)?

  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Snow removal
  • Remove debris from construction sites
  • Fence pole installation
  • Sod removal
  • Clear land and load rubbish bins
  • Plant trees
  • Remove stumps
  • Load pickup trucks, hoppers and spreaders
  • Grade and level driveways
  • Load sand and gravel
  • Brush cutting

We provide quick delivery on all skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island region: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford, Chilliwack, Squamish, Whistler, Nanaimo, Victoria. See our Delivery rates for more details.

ENGINE

Emission Rating Interium Tier 4 / Stage 3B
Engine Make / Engine Model John Deere / PowerTech E 4024HT
Net Power, kW (hp) @ Rated rpm 51.4 (69) @ 2300
Gross Power, kW (hp) 55 (74)
Net Peak Torque, N-m (lb-ft) 260 (192)
Displacement, L (cu in) 2.4 (149)
Engine Aspiration Turbo. intercooled
Fuel Capacity, L (gal) 70 (19)

HYDRAULIC SYSTEM

Standard Pump Flow, L/min (gpm) 72 (19)
Optional High Flow, L/min (gpm) 110 (29)
System Pressure, kPa (psi) 23789 (3450)
Hydraulic power, kW (hp) 29.8 (40)
Optional high flow hydraulic power, kW (hp) 46.2 (62)

PERFORMANCE

SAE Rated Operating Capacity, kg (lb) 1042 (2295)
Tipping Load, standard, kg (lb) 3257 (7175)
Breakout Force Boom, kN (lb) 16.8 (3700)
Breakout Force Bucket, kN (lb) 25.4 (5600)
Vertical lift geometry Yes

DRIVE TRAIN

Maximum Ground Speed, standard, kph (mph) 9.8 (6.1)
Two Speed Transmission Ground Speed, kph (mph) 13.7 (8.5)
Standard Rubber Track Width mm (in) 320 (12.6)
Ground Pressure, Standard Track, kPa (psi) 37.2 (5.4)
Track Guage, center to center, mm (in) not published

DIMENSIONS

Length with Bucket, mm (in) 3360 (132)
Length Without Bucket, mm (in) 2740 (108)
Width Without Bucket, mm (in) 1830 (72)
Height to ROPS, mm (in) 2000 (79)
Height to Hinge Pin, mm (in) 3000 (118)
Dump Height, mm (in) 2400 (95)
Dump Reach, mm (in) 920 (28.4)
Dump Angle, degrees 42
Bucket Rollback @ ground, degrees 32
Ground Clearance, mm (in) 250 (9.8)
Angle of Departure, degrees 25

WEIGHT

SAE Operating Weight, kg (lb) 3882 (8550)
