604 442 7368
| Daily | Weekly | Monthly | |
|---|---|---|---|
| Regular | $330 |
$1350 |
$3800 |
| Corporate | $295 |
$1195 |
$2700 |
|
+ Delivery Rate & Operator Rate
Rent Now |
|||
604 442 7368

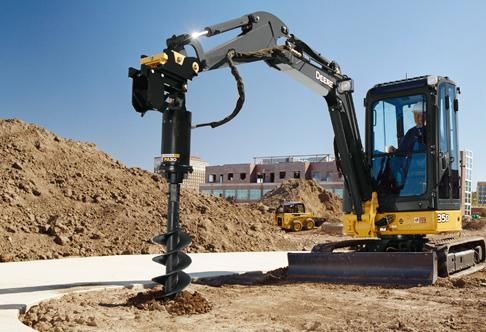

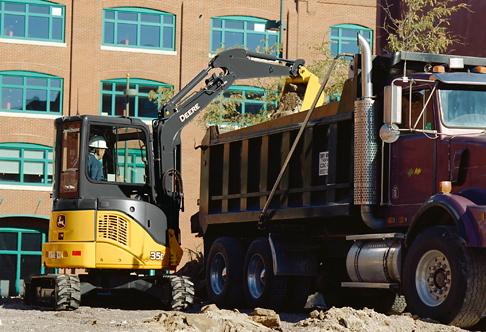

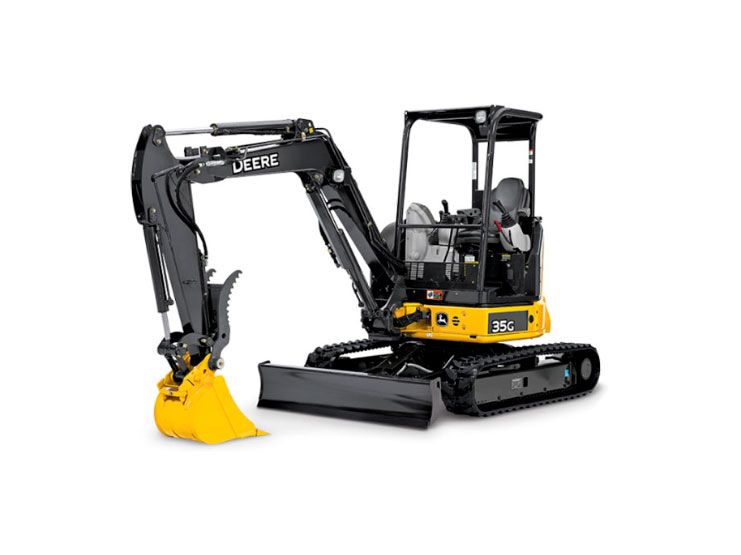

If you need to rent a Mini Excavator that is the next step up from the John Deere 27D mini excavator rental, then the compact and powerful John Deere 35D Mini Excavator is a great choice. It's maximum digging depth of 10 feet and digging reach of 17 feet 1 inch make it a versatile tool for commercial or residential projects.
Power: The 35D's high drawbar pull (pulling force) delivers plenty of power for backfilling trenches or transporting materials.
Compact: The 35D's independent-swing boom and 360-degree rotation allows you to work in areas where shovels used to be the only option.
Visibility: The 35D's unobstructed visibility provides you with increased productivity and safety.
Versatile: With multiple attachment options, the John Deere 35D mini excavator is an extremely flexible tool.
What can you do with a John Deere 35D Mini Excavator rental?
- Tear down a house
- Dig up sewage pipes or electrical conduit
- Break up concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Fence pole installation
- Plant trees
- Remove stumps
- Load sand and gravel
- Brush Cutting
We provide quick delivery on all skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details.
ENGINE
| Emission Rating | Interim Tier 4 / EU Stage 3B |
| Engine Make / Engine Model | Yanmar / 3 TNV 88 |
| Net Power, kW (hp) @ Rated rpm | 21.3 (28.6) @ 2400 |
| Gross Power, kW (hp) | not published |
| Displacement, L (cu in) | 1.606 (100.4) |
HYDRAULIC SYSTEM
| Pump Type | Variable Displacement + Gear |
| Total Pump Flow, L/m (gpm) | 80.2 (21.2) |
| Normal Relief Pressure, kPa (psi) | not published |
| Auxilliary Hyd. Max Flow Rate, L/m (gpm) | 66.2 (17.5) |
UNDERCARRIAGE
| Track Width, mm (in) | 300 (12) |
| Overall Track Length, mm (ft) | 2110 (6 ' 11 '') |
| Ground Clearance, mm (in) | 280 (11) |
| Width Over Std Track, mm (ft) | 1740 (5 ' 9 '') |
| Ground Pressure, Std. Track, kPa (psi) | 31.7 (4.6) |
| Travel speed 1, kph (mph) | 2.8 (1.7) |
| Travel speed 2, kph (mph) | 4.4 (2.8) |
| Travel speed 3, kph (mph) | not published |
| Travel speed 4, kph (mph) | not published |
| Gradeability, % | --- |
| Gradeability, deg | --- |
| Max. Drawbar Pull, kN (lbf) | not published |
BLADE
| Blade Width, mm (ft) | 1740 (5 ' 9 '') |
| Blade Height, mm (ft) | 370 (14.6) |
| Blade Max Lift Above Grd. Level, mm (in) | 370 (14.6) |
| Blade Max Lift Below Grd. Level, mm (in) | 390 (15.4) |
PERFORMANCE
| Standard Arm, mm (ft in) | 1350 (4 ' 4 '') |
| Max. Digging Height w/Std Arm, mm (ft) | 4870 (16 ' ) |
| Max. Digging Depth w/Std Arm, mm (ft) | 3050 (10 ' ) |
| Max. Digging Reach w/Std Arm, mm (ft) | 5310 (17 ' 1 '') |
| Max. Digging Reach @ G.L. w/Std Arm, mm (ft) | not published |
| Max. Dump Height w/Std Arm, mm (ft) | 3490 (11 ' 5 '') |
| Max. Vertical Wall Depth w/Std Arm, mm (ft) | not published |
| Min. Front Swing Radius, mm (ft in) | 2070 (6 ' 9 '') |
| Min Front Swing Radius w/Boom Swing, mm (ft) | --- |
| Boom Swing Angle - left, deg | 72 |
| Boom Swing Angle - right, deg | 62 |
| Lift Cap. Over Front @ 10' G.L. (incl bckt), kg (lb) | 1505 (3135) |
| Lift Cap. Over Side @ 10' G.L. (incl bckt), kg (lb) | 653 (1439) |
| Max Arm Digging Force, kN (lb) | 19.1 (4294) |
| Max Bucket Digging Force, kN (lb) | 27.5 (6182) |
| Tail Swing Radius, mm (ft in) | 870 (2 ' 10 '') |
| Swing Speed, rpm | 9.1 |
TRANSPORT SPECIFICATIONS
| Transport Length, mm (ft) | 4650 (15 ' 3 '') |
| Transport Height, mm (ft) | 2460 (8 ' 1 '') |
| Transport Width, mm (ft) | 1740 (5 ' 9 '') |
CAPACITIES
| Fuel Tank, L (gal) | 40 (10.6) |
| Hydraulic Reservoir, L (gal) | 32 (8.5) |
WEIGHT
| SAE Operating Weight, kg (lb) | 3520 (7760) |
-
Perfect Job, Start to Finish. Great equipment rental company!
Machines Used:We called Rent1 because we were doing a pretty large landscaping project in our backyard. Originally we wanted to rent a mini-excavator and Bobcat. Then they recommended because the backyard was wet that renting a compact track loader would be better for traction, and it wouldn't rip up the grass. When we originally rented the equipment they brought a John Deere 35D and a 323D tracked skid steer. We realized that we weren't that proficient at operating the machines so we called Rent1 back and were delighted to know about an option to hire an mini excavator operator and for the track loader as well. They were very fair and we were happy with our job in the end which probably cost less than renting because the equipment was utilized efficiently.
I would highly recommend renting mini excavators, compact track loaders and skid steer rentals from Rent1 as they are fair and honest. We love the way our yard looks.
Thanks Rent1!
Richard B.Home OwnerSurrey, BC
