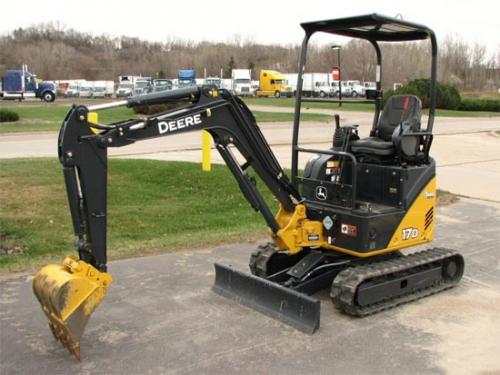

If you need to rent a Mini Excavator for a commercial or residential project that involves close-quarters work, the compact and powerful John Deere 17D Mini Excavator might be the perfect choice. It's maximum digging depth of 7 feet 1 inch and digging reach of 12 feet 10 inches make it a versatile tool. The next step up from the John Deere 17D is a John Deere 27D Mini Excavator Rental
Power: The 17D's high drawbar pull (pulling force) delivers plenty of power for backfilling trenches or transporting materials.
Compact: The John Deere 17D mini excavator's independent-swing boom and 360-degree rotation allows you to work in areas where shovels used to be the only option.
Visibility: The 17D's unobstructed visibility provides you with increased productivity and safety.
Versatile: With multiple attachment options, the 17D is an extremely flexible tool.
What can you do with a John Deere 17D Mini Excavator rentals?
- Tear down a fence
- Dig up sewage pipes or electrical conduit
- Break up concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Fence pole installation
- Plant trees
- Remove stumps
- Load sand and gravel
- Brush Cutting
We provide quick delivery on all skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford, Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details.
Boom/Stick Option
| A. Shipping Length of Unit | 11.8 ft in | 3590 mm |
| C. Shipping Height of Unit | 7.9 ft in | 2400 mm |
| I. Max Cutting Height | 11.7 ft in | 3560 mm |
| J. Max Loading Height | 8.3 ft in | 2530 mm |
| M. Max Digging Depth | 7.1 ft in | 2170 mm |
Dimensions
| B. Width to Outside of Tracks | 4.2 ft in | 1280 mm |
| D. Length of Track on Ground | 4 ft in | 1210 mm |
| E. Ground Clearance | 0.54 ft in | 165 mm |
| G. Height to Top of Cab | 7.9 ft in | 2400 mm |
| H. Tail Swing Radius | 2.2 ft in | 675 mm |
| O. Counterweight Clearance | 1.4 ft in | 435 mm |
Undercarriage
| F. Track Gauge | 3.4 ft in | 1050 mm |
| N. Shoe Size | 9.1 in | 230 mm |
Engine
| Make | Yanmar | |
| Model | 3TNV70 | |
| Net Power | 14.8 hp | 11 kw |
| Power Measured @ | 2400 rpm | |
| Displacement | 52.1 cu in | 0.85 L |
| Aspiration | Natural | |
| Number of Cylinders | 3 | |
Operational
| Operating Weight | 4173 lb | 1892.8 kg |
| Fuel Capacity | 5.2 gal | 19.7 L |
| Cooling System Fluid Capacity | 0.71 gal | 2.7 L |
| Hydrauilc System Fluid Capacity | 5.3 gal | 20.1 L |
| Engine Oil Capacity | 0.82 gal | 3.1 L |
| Alternator Supplied Amperage | 40 amps | |
| Hydraulic Pump Flow Capacity | 13.5 gal/min | 51.1 L/min |
Swing Mechanism
| Swing Speed | 8.9 rpm | |
Undercarriage
| Shoe Size | 9.1 in | 230 mm |
| Ground Pressure | 4.1 psi | 28.3 kPa |
| Max Travel Speed | 2.7 mph | 4.3 km/h |
| Track Gauge | 3.4 ft in | 1050 mm |
Boom/Stick Option (HEX) 1
| Boom/Stick Option (HEX) 1 | 3'1" (930mm) arm | |
| Shipping Height of Unit | 7.9 ft in | 2400 mm |
| Shipping Length of Unit | 11.8 ft in | 3590 mm |
| Max Digging Depth | 7.1 ft in | 2170 mm |
| Max Cutting Height | 11.7 ft in | 3560 mm |
| Max Loading Height | 8.3 ft in | 2530 mm |
Boom/Stick Option (HEX) 2
| Boom/Stick Option (HEX) 2 | 3'8" (1130mm) arm | |
| Shipping Height of Unit | 7.9 ft in | 2400 mm |
| Shipping Length of Unit | 11.9 ft in | 3640 mm |
| Max Digging Depth | 7.8 ft in | 2370 mm |
| Max Cutting Height | 12 ft in | 3660 mm |
| Max Loading Height | 8.6 ft in | 2630 mm |
Dimensions
| Width to Outside of Tracks | 4.2 ft in | 1280 mm |
| Height to Top of Cab | 7.9 ft in | 2400 mm |
| Ground Clearance | 0.54 ft in | 165 mm |
| Counterweight Clearance | 1.4 ft in | 435 mm |
| Tail Swing Radius | 2.2 ft in | 675 mm |
| Length of Track on Ground | 4 ft in | 1210 mm |
