Greater Vancouver Skid Steer & Mini Excavator Rentals

Compact Track Loader Rental: John Deere CT315

  Daily Weekly Monthly
Regular
$340
$1300
$3600
Corporate
$325
$1275
$3370
+ Delivery Rate & Operator Rate
Rent Now
We honor the lowest rate on all long term rentals.
604 442 7368

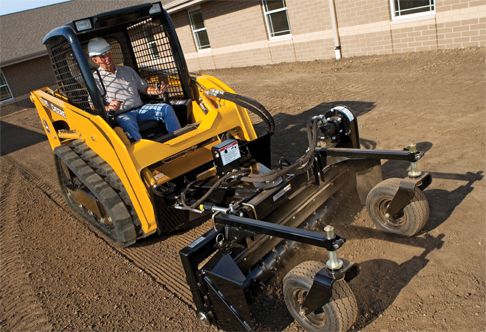

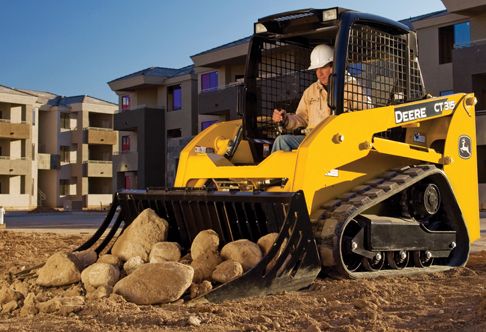

Do you need to rent a Compact Track Loader CTL (Rubber Track Skid Steer) for a commercial or residential project within confined areas?  If so, consider the smallest of the John Deere fleet, the agile John Deere CT315 track loader rental. The next step up from a JD 315CT is a John Deere 319D Compact Track Loader.

Tracks vs. Tires: Why rent a Compact Track Loader vs. a skid steer?

  •  A Compact Track Loader's (Rubber Track Skid Steer) superior stability is excellent for working on slopes with uneven terrain or surfaces with loose gravel, mud or soft ground. (Places a skid steer with tires would likely get stuck).

  • The tracks distribute the loader's weight evenly (at 4.8 psi) minimizing ground pressure. Result? Minimal damage to surfaces such as lawns etc.
  • No flat tires...

Power: The John Deere CT315's 49 HP turbocharged 2.4L diesel engine allows you to carry loads of up to 1500 lbs. (The CT315's Tipping Load is 4412 lbs.)

Visibility: Industry-leading 360-degree visibility provides enhances productivity and safety.

Superior bucket angle: The 40-degree dump angle allows the bucket to empty all content (including sticky material).

Comfort: The CT315's sculptured high back seat will help you keep productivity high.

What can you do with a John Deere CT315 Compact Track Loader Rental (Rubber Track Skid Steer Rentals)?

  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Snow removal
  • Remove debris from construction sites
  • Fence pole installation
  • Sod removal
  • Clear land and load rubbish bins
  • Plant trees
  • Remove stumps
  • Load pickup trucks, hoppers and spreaders
  • Grade and level driveways1
  • Load sand and gravel
  • Brush cutting

We provide best rates and quick delivery on all skid steer rentals, mini-excavator rentals, and compact track loader (Rubber Track Skid Steer) rentals throughout the Lower Mainland of Greater Vancouver, Fraser Valley and the Vancouver Island region: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford, Chilliwack, Squamish, Whistler, Nanaimo, Victoria. See our Delivery rates for more details.



ENGINE

Emission Rating Interim Tier 4 / Stage 3B
Engine Make / Engine Model John Deere / PowerTech 4024T
Net Power, kW (hp) @ Rated rpm 33.5 (45) @ 2400
Gross Power, kW (hp) 36.5 (49)
Net Peak Torque, N-m (lb-ft) not published
Displacement, L (cu in) 2.4 (149)
Engine Aspiration Turbo.
Fuel Capacity, L (gal) 66 (17.5)

HYDRAULIC SYSTEM

Standard Pump Flow, L/min (gpm) 61 (16)
Optional High Flow, L/min (gpm) not published
System Pressure, kPa (psi) 23800 (3450)
Hydraulic power, kW (hp) 26.1 (35)
Optional high flow hydraulic power, kW (hp) not published

PERFORMANCE

SAE Rated Operating Capacity, kg (lb) 681 (1500)
Tipping Load, standard, kg (lb) 2003 (4412)
Breakout Force Boom, kN (lb) 12 (2700)
Breakout Force Bucket, kN (lb) 14.7 (3300)
Vertical lift geometry No

DRIVE TRAIN

Maximum Ground Speed, standard, kph (mph) 9.7 (6)
Two Speed Transmission Ground Speed, kph (mph) not published
Standard Rubber Track Width mm (in) 320 (12.6)
Ground Pressure, Standard Track, kPa (psi) 33.3 (4.8)
Track Guage, center to center, mm (in) 1220 (48.4)

DIMENSIONS

Length with Bucket, mm (in) 3170 (124)
Length Without Bucket, mm (in) 2440 (96)
Width Without Bucket, mm (in) 1540 (61)
Height to ROPS, mm (in) 1960 (77)
Height to Hinge Pin, mm (in) 2780 (110)
Dump Height, mm (in) 2310 (91)
Dump Reach, mm (in) 442 (17.4)
Dump Angle, degrees 40
Bucket Rollback @ ground, degrees 30
Ground Clearance, mm (in) 198 (7.8)
Angle of Departure, degrees 25.25

WEIGHT

SAE Operating Weight, kg (lb) 3087 (6800)
