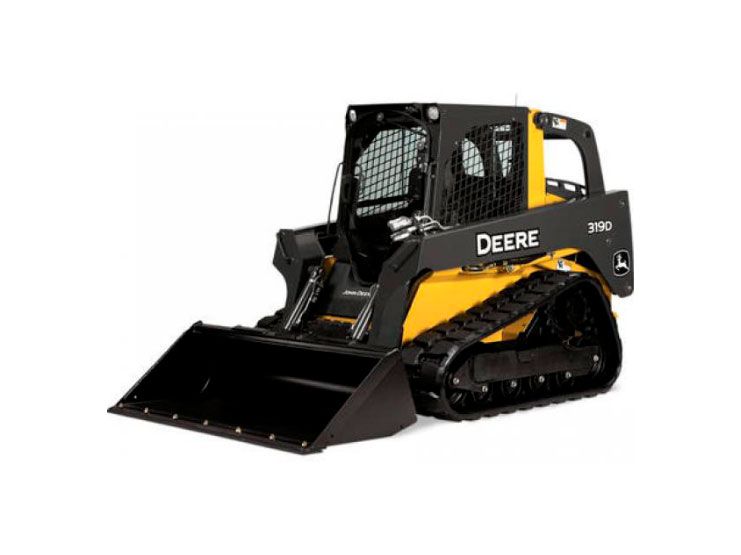

Compact Track Loader Rental: John Deere 319D

  Daily Weekly Monthly
Regular
$350
$1400
$3900
Corporate
$335
$1300
$3430
+ Delivery Rate & Operator Rate
Rent Now
We honor the lowest rate on all long term rentals.
604 442 7368

Do you need to rent a Compact Track Loader CTL (Rubber Track Skid Steer) for a commercial or residential project?  If so, consider renting the John Deere 319D Compact Track Loader..

Tracks vs. Tires: Why rent a Compact Track Loader vs. a skid steer?

  • A Compact Track Loader's (Rubber Track Skid Steer) superior stability is excellent for working on slopes with uneven terrain or surfaces with loose gravel, mud or soft ground. (Places a skid steer would likely get stuck)

  • The tracks distribute the loader's weight evenly (at 5.4 psi) minimizing ground pressure. Result? Minimal damage to sensitive surfaces and under-structure such as soil, lawns, and pipes.

  • No flat tires...

Powerful: The JD 319D's 5 cylinder  engine delivers 68 HP (vs. 49 HP for the John Deere CT315 Track Loader Rental), allows you to carry loads of up to 1900 lbs. (vs. 1500 lbs. for the CT315). The 319D'sTipping Load is 5,600 lbs. vs. 4,412 lbs. for the CT315.

Visibility: Best in class visibility enhances productivity and safety.

Superior bucket angle: The 35-degree dump angle allows the bucket to empty all content.

Comfort: The John Deere 319D's sculptured high back seat will help you keep productivity high.

What can you do with a John Deere 319D Compact Track Loader Rental (Rubber Track Skid Steer Rentals)?

  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Snow removal
  • Remove debris from construction sites
  • Fence pole installation
  • Sod removal
  • Clear land and load rubbish bins
  • Plant trees
  • Remove stumps
  • Load pickup trucks, hoppers and spreaders
  • Grade and level driveways
  • Load sand and gravel

We provide quick delivery on all skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, Fraser Valley and the Vancouver Island region: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford, Chilliwack, Squamish, Whistler, Nanaimo, Victoria. See our Delivery rates for more details.

ENGINE

Emission Rating Interim Tier 4 / Stage 3B
Engine Make / Engine Model John Deere / PowerTech E 4024HT
Net Power, kW (hp) @ Rated rpm 47.1 (63) @ 2300
Gross Power, kW (hp) 50.8 (68)
Net Peak Torque, N-m (lb-ft) 230 (170)
Displacement, L (cu in) 2.4 (149)
Engine Aspiration Turbo. intercooled
Fuel Capacity, L (gal) 70 (19)

HYDRAULIC SYSTEM

Standard Pump Flow, L/min (gpm) 59 (15.5)
Optional High Flow, L/min (gpm) not published
System Pressure, kPa (psi) 21370 (3100)
Hydraulic power, kW (hp) 22.4 (30)
Optional high flow hydraulic power, kW (hp) not published

PERFORMANCE

SAE Rated Operating Capacity, kg (lb) 863 (1900)
Tipping Load, standard, kg (lb) 2542 (5600)
Breakout Force Boom, kN (lb) 15.8 (3500)
Breakout Force Bucket, kN (lb) 23.2 (5125)
Vertical lift geometry Yes

DRIVE TRAIN

Maximum Ground Speed, standard, kph (mph) 9.8 (6.1)
Two Speed Transmission Ground Speed, kph (mph) not published
Standard Rubber Track Width mm (in) 320 (21.6)
Ground Pressure, Standard Track, kPa (psi) 37.2 (5.4)
Track Guage, center to center, mm (in) 1500 (59.1)

DIMENSIONS

Length with Bucket, mm (in) 3360 (132)
Length Without Bucket, mm (in) 2740 (108)
Width Without Bucket, mm (in) 1820 (72)
Height to ROPS, mm (in) 2000 (79)
Height to Hinge Pin, mm (in) 3000 (118)
Dump Height, mm (in) 2400 (95)
Dump Reach, mm (in) not published
Dump Angle, degrees 42
Bucket Rollback @ ground, degrees 32
Ground Clearance, mm (in) 250 (9.8)
Angle of Departure, degrees 25

WEIGHT

SAE Operating Weight, kg (lb) 3882 (8550)
